Rated Output: 82/74
Rated Digging Bucket Capacity: 0.2
Operating Weight: 8000

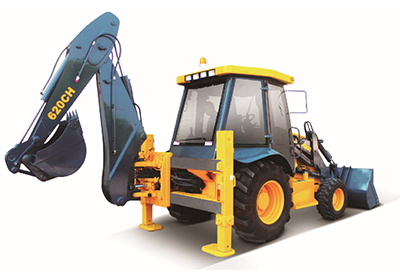

| Model | 620CH |
| Diesel Engine | Cummins 4BTA3.9-C110 |
| Cummins B4.5 | |
| Front Type | 12.5-16NHS-12PR(4WD)/11L-16F3-12PR(2WD) |
| Rear Type | 19.5L-24R4-12PR |
| Rated Power | 82/74kW |
| Rated Speed | 2200rpm |
| Rated Loading bucket capacity | 1m³ |
| Rated load | 1700kg |
| Max.dumping reach | 845mm |
| Max.dumping clearance | 2714mm |
| Max. loading breakout force | ＞60kN |
| Rated digging bucket capacity | 0.2m³ |
| Max. digging depth | 4405mm |
| Max. digging force | 56.1±10%kN |
| Max. digging radius | 5390mm |
| Max. dumping height | 3510mm |
| Hydraulic system | 110L |
| Fuel tank | 151L |
| Transmission | 18.5L |
